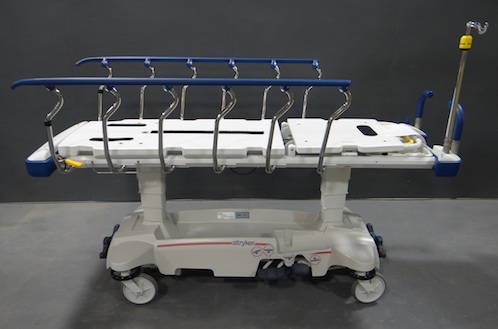

Stryker 1007 M-Series Stretcher

Overall Length: 84” (213.4 cm)
Overall Width (siderails up): 33 ½” (85.1 cm) [26” litter] or 37” (94 cm) [30” litter]
Overall Width (siderails down): 30 ¼” (76.8 cm) [26” litter] or 30 ¾ (78.1 cm) [30” litter]
Height Overall – High Position: 34” (86.4 cm)
Height Overall – Low Position: 20 ¾” (52.7 cm)
Caster Size: 8” (20.3 cm)
Knee Gatch: 0° – 40°
Fowler Angle: 0° – 90°
Trendelenburg/Reverse Trendelenburg: ±16°
Minimum Under Stretcher Clearance: 6” (15 cm) nominal 1 ¾” (4.5 cm) under the hydraulic cylinders and 5th wheel
Maximum Patient Weight: 700 lb. (317.5 kg)
