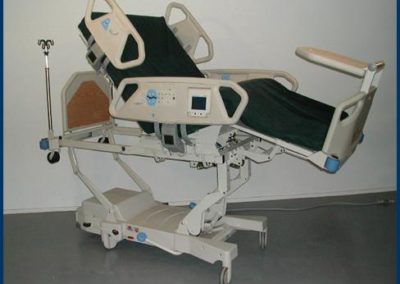

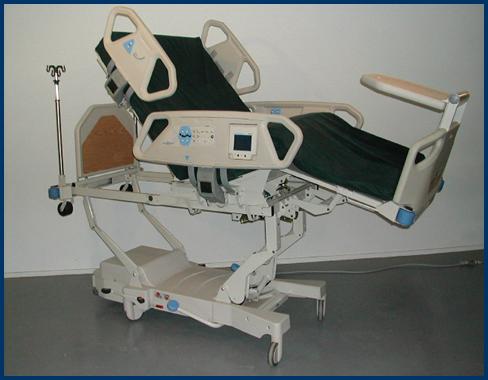

Hill-Rom P1900 TotalCare with Scale

Request more information about this product

Call us at 1.336.386.1040

Specifications

Height – From Floor to Top of Articulating Deck (bottom of mattress) – Low Position – Between Stepped Sides: 4 ½” – 15 ½” (36.8 – 39.4 cm)
Height – From Floor to Top of Articulating Deck (bottom of mattress) – High Position – Between Stepped Sides: 33 ½” – 34 ½” (85.9 – 87.6 cm)
Minimum Under Bed Clearance: 1 ¾” (4.45 cm)
Minimum Clearance Between Articulating Deck Foot Section and the Floor for any Bed Position, except the Tilt-Table and the Chair Egress Positions with the Foot Section at 90°: 2” (5.1 cm)
Overall Width – Siderails Raised: 40” (101.6 cm)
Overall Width – Siderail Lowered: 6 ½” (92.7 cm)
Overall Width – Distance between Casters: 25 ½” (64.8 cm)
Overall Length: 91 ½” (232.4 cm)
Overall Length (with roller bumpers): 92 ½” (235 cm)
Overall Length (transport shelf installed): 93 ½” (237.5 cm)
Overall Foot Section Width: 28 22/25” – 29.13” (73.4 – 74 cm)
Fully Extended Length of the Foot Section from Pivot to inside of the Footboard: 26 ¾” – 27 ¼” (67.95 – 69.22 cm)
Articulating Deck Length: 81 ¾” – 82 ¼” (207.65 – 208.92 cm)
Maximum Head Elevation: 75°
Maximum Knee Elevation: 20°

Download PDF
